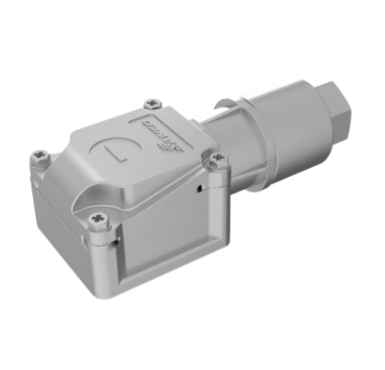

TLB-50/70MSingle core metal junction box
Technical Parameters
-
Voltage rating: DC 1000V
- Current rating :
- 250A Adaptor: 50mm²
- 300A Adaptor: 70mm²
- Withstand voltage: AC 3500V(Normalcy)
- Insulation resistance: ≥3000MΩ(Normalcy)
- Protection rating: IP67
- Plugging times: 100
- Ambient temperature: -40℃ ~+125℃
- High-voltage interlocking: None
- Shielding: 360°
Features and Characteristics
- Superior Performance
- Multiple specifications
- High reliability
Application
Applied to batteries
Order Information
Product Dimensions
