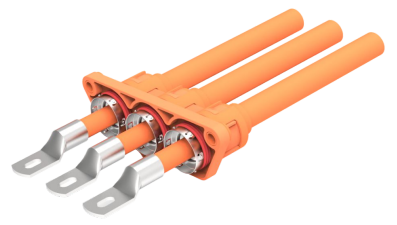

PTB-03Three core through-hole plastic connector
Technical Parameters
-
Voltage rating : DC 1000V
- Current rating:
- 120A Adaptor: 25mm²
- 150A Adaptor: 35mm²
- 220A Adaptor: 50mm²
- Withstand voltage: AC 3000V(Normalcy)
- Insulation resistance: ≥3000MΩ(Normalcy)
- Protection rating : IP67 、IP6K9K
- Ambient temperature: -40℃ ~+125℃
- High-voltage interlock: None
- Shielding: 360°
Features and Characteristics
- Superior Performance
- Small Size
- Multiple specifications
- Flexible configuration
Application
Applied to motors, batteries, electronic control, PDU, multi in one
powertrain systems, etc.
Order Information
Product Dimensions
