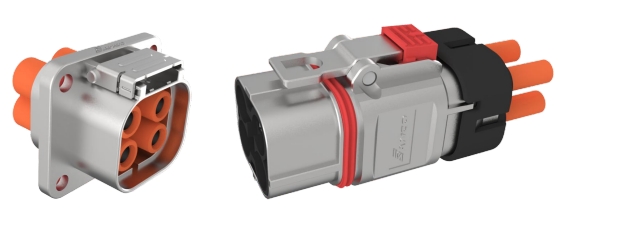

EPE-360FFour core metal connector
Technical Parameters
-
Voltage rating: DC 800V
- Current rating :
- 20A Adaptor: 2 . 5mm²
- 32A Adaptor: 4mm²
- 42A Adaptor: 6mm²
- Withstand voltage: AC 3200V(Normalcy)
- Insulation resistance: ≥3000MΩ(Normalcy)
- Protection rating: IP67 、IP6K9K
- Plugging times: 100
- Ambient temperature: -40℃ ~+125℃
- High-voltage interlock: Yes
- Shielding: 360°
Features and Characteristics
- Superior Performance
- Misplug-prevention
- Mistake-prevention
- Secondary lock
Application
Multiple specificationsApplied to PTC, air conditioning, charger, PDU, OBC, DC/DC, etc
Order Information
Product Dimensions
