Energe Storage System Connector

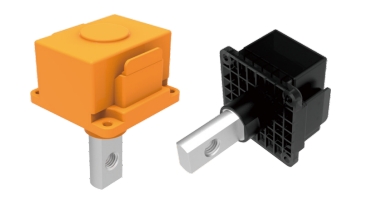

600A Bolt Connector For Energy Storage Systems(Not Waterproof)

Technical Parameters
  • - Material
  • - Housing Material: PA66-GF
  • - Terminal Material: Copper Alloy, Silvering-plated
  • - Mechanical Performance
  • - Plugging times:500
  • - Electrical Performance
  • - Rated Current:600A
  • - Rated Voltage: DC 1500V
  • - Resistance and Withstand Voltage: DC 6800V
  • - Insulation Resistance: ≥500MΩ
  • - Contact Resistance: ＜0.5mΩ
  • - Temperature Rise: ＜50K
  • - Environmental Performance
  • - Ambient temperature: -40 ℃~+125 ℃
  • - Salt Spray: 96H
  • - General Requirements
  • - Mounting Torque: M8-15N.m, M4-2.0N.m
  • - Maximum Compatible Busbar Size: 35*10㎜²
  • - Wiring Gauge: 185mm max
  • - Flame retardant rating: UL94 V-0
  • - Certification: UL 4128，EN 61984(TUV)
