ProductsEnerge Storage System Connector
Energe Storage System Connector

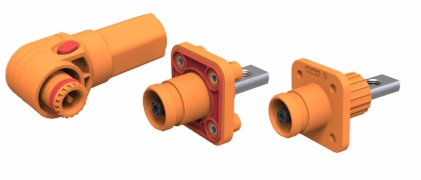

ES091SQuick Plug Connector For Energy Storage Systems

Technical Parameters
  • - Material
  • - Housing Material: PA66-GF
  • - Terminal Material: Copper Alloy, Silvering-plated
  • - Mechanical Performance
  • - Plugging Times: 200
  • - Multiple Polarization: 2Keys,Correct polarity protection
  • - Electrical Performance
  • - Rated Current: 150A-35mm²/200A-50mm²/250A-70mm²
  • - Rated Voltage: DC 1500V
  • - Resistance and Withstand Voltage: DC 6800V
  • - Insulation Resistance: ≥500MΩ(1000V DC）
  • - Contact Resistance: ≤0.3mΩ
  • - Temperature Rise: ＜45K
  • - Environmental Performance
  • - Ambient Temperature: -40 ℃~+125 ℃
  • - Salt Spray: 96H
  • - General Requirements
  • - Protection grade: IPXXB
  • - Flame retardant rating: UL94 V-0
  • - Certification: UL 4128
  • - The cable connection methods：Crimping and ultrasonic welding
