ProductsEnerge Storage System Connector

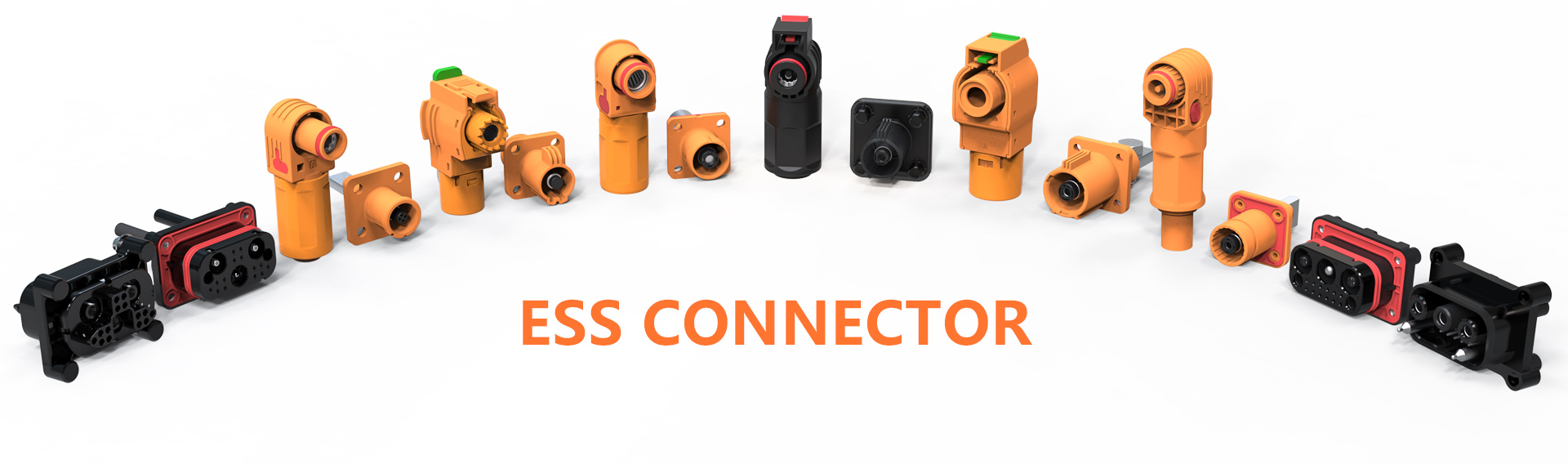

Energe Storage System Connector

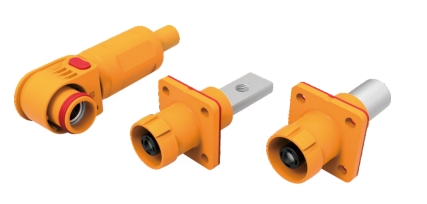

ES090Quick plug connector for energy storage system(Waterproof)

Technical Parameters
  • Material
  • - Housing Material: PA66-GF
  • - Terminal Material: Copper Alloy, Silvering-plated
  • - Mechanical Performance
  • - Plugging Times: 200
  • - Multiple Polarization: 6Keys
  • - Electrical Performance
  • - Rated Current: 120A-25mm²/150A-35mm²/200A-50mm²
  • - Rated Voltage: DC 1000V/AC 800V
  • - Resistance and Withstand Voltage: AC 3000V
  • - Insulation Resistance: ≥500MΩ
  • - Contact Resistance: ＜0.5MΩ
  • - Temperature Rise: ＜50K
  • - Environmental Performance
  • - Ambient Temperature: -40 ℃~+125 ℃
  • - Salt Spray: 96H
  • - General Requirements
  • - Secondary Locking Structure
  • - Protection grade: IPXXB IPX7
  • - Flame retardant rating: UL94 V-0
  • - Certification: EN 61984(TUV); UL 1977
