ProductsEnerge Storage System Connector
Energe Storage System Connector

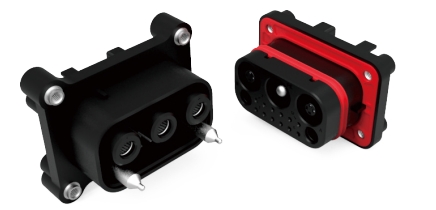

3+12Stacked Connector

Technical Parameters
  • - Material
  • - Housing Materia: PA66-GF UL94 V-0
  • - Terminal Material: Copper Alloy, Silvering-plated
  • - Mechanical Performance
  • - Plugging times:100
  • - Electrical Performance
  • - Rated Current: 100A
  • - Rated Voltage: DC 500V
  • - Resistance and Withstand Voltage: AC 2500V
  • - Insulation Resistance: ≥200MΩ
  • - Contact Resistance: ﹤0.5mΩ
  • - Temperature Rise: ﹤40K
  • - Environmental Performance
  • - Ambient temperature: -40 ℃~+125 ℃
  • - Salt Spray: 96H
  • - General Requirements
  • - Secondary Locking structure
  • - Protection grade:IPXXB
  • - Certification: EN 61984(TUV)
