ProductsEnerge Storage System Connector
Energe Storage System Connector

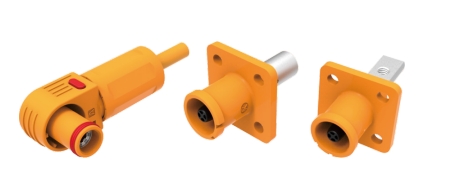

ES057Quick Plug Connector For Energy Storage Systems(Waterproof)

Technical Parameters
  • - Material
  • - Housing Material: PA66-GF
  • - Terminal Material: Copper Alloy, Silvering-plated
  • - Mechanical Performance
  • - Plugging Times: 500
  • - Multiple Polarization: 6Keys
  • - Electrical Performance
  • - Rated Current:63A-10mm²/80A-16mm²/120A-25mm²
  • - Rated Voltage: DC 1000V / AC 800V
  • - Resistance and Withstand Voltage: AC 3000V
  • - Insulation Resistance: ≥500MΩ
  • - Contact Resistance:＜0.6mΩ
  • - Temperature Rise:＜50K
  • - Environmental Performance
  • - Ambient Temperature: -40 ℃~+125 ℃
  • - Salt Spray: 96H
  • - General Requirements
  • - Secondary Locking Structure
  • - Protection grade:IPXXB IP67
  • - Flame retardant rating: UL94 V-0
  • - Certification: EN 61984(TUV); UL 1977
