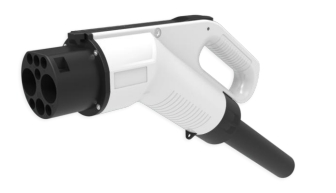

GB DC HPC
Technical Parameters
-
Rated voltage: 1500V DC
Rated current:300A/400A/500A/600A
Withstand voltage: 4500V AC 1min
Insulation resistance: 1000MΩ(1min 1000V DC)
Insertion and extraction force: ＜140N
Plugging times: 10000
Protection grade: IP67
Flame retardant rating: UL94-V0
Ambient temperature: -40℃~+85℃
GB/T20234.1-2022、GB/T20234.3-2022
-
Features and Characteristics
- Comfortable and convenient to use
- Safe and reliable
- High power charging liquid cooling cycle function
- Customizable appearance color and line length according to user requirements
Application
Electric Vehicles,Charging Equipment
Product Dimensions
