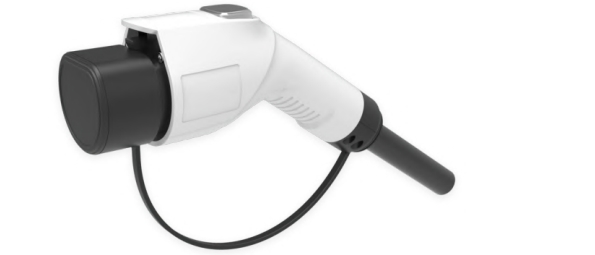

GB AC gun(vehicle end)
Technical Parameters
-
Rated voltage: 250V/440V AC
- Rated current: 16A/32A
- Insulation resistance: 1000MΩ(1min 1000V DC)
- Plugging times: 10000
- Protection grade: IP67
- Flame retardant rating: UL94-V0
- Insertion and extraction force: ＜100N
- Withstand voltage: 2500V AC 1min
- Ambient temperature: -40℃~+85℃
- Standard: GB/T20234.1、GB/T20234.2
Features and Characteristics
- Comfortable and convenient to use
- Safe and reliable
- Ergonomic and aesthetically pleasing
- Passed national CQC certification and mandatory inspection report
- Customizable appearance color and line length according to user requirements
Application
Electric Vehicles,Charging Equipment
Product Dimensions
