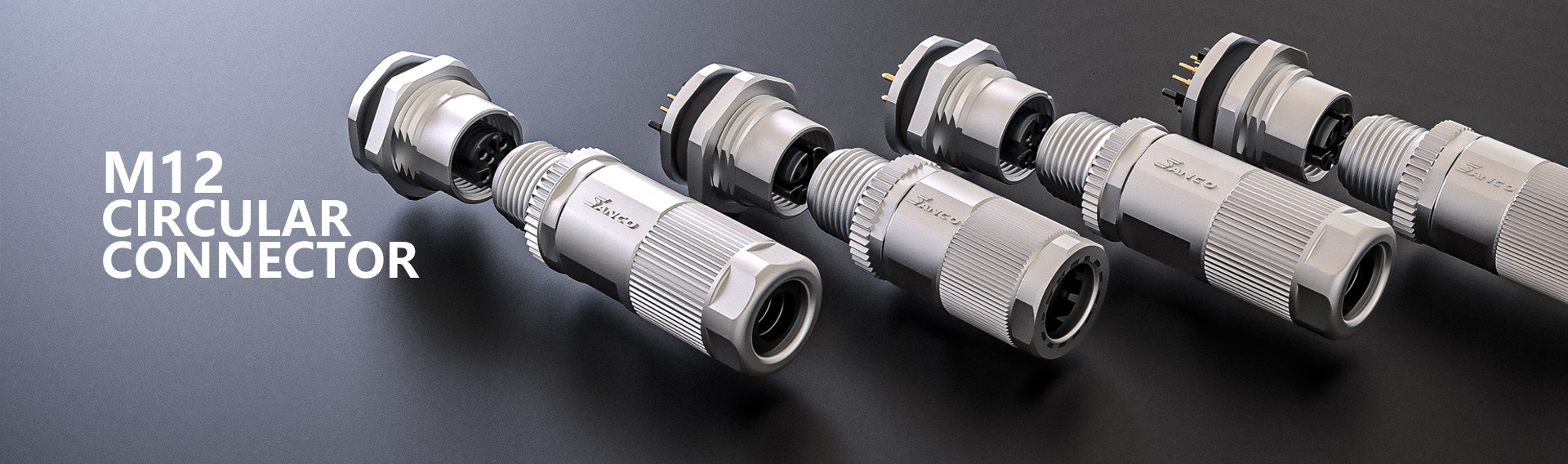

M12 D-Codinghole type panel mount connector, dip soldering
Technical Parameters
-
Standards and specifications: DIN EN 61076
- Quantity of Pins: 4
- Plug/unplug times: ≤100 times
- Rated current: 4A
- Rated voltage: 250V AC
- Insulation and voltage resistance: 1400V AC
- Insulation resistance: ＞100MΩ(AT 25°)
- Contact resistance: ≤10mΩ
- Ambient temperature: -40℃~85℃
- Salt spray: 48H
- Flame retardant rating: UL94 V-0
- Protection grade: IP67
Application
Automation industry
Rail transit industry
New energy industry
Automobile manufacturing industry
Intelligent manufacturing
Ethernet
Product Dimensions
