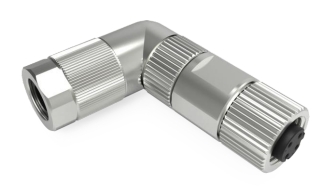

M12 D-Coding hole type bend connector, crimping and shielding
Technical Parameters
-
Standards and specifications: DIN EN 61076
- Quantity of Pins: 4- Plug/
- unplug times: <100 times
- Rated current: 4A
- Rated voltage: 250V AC
- Insulation and voltage resistance: 1400V AC
- Insulation resistance: > 100mΩ (AT 25°
- Contact resistance: <100mΩ
- Ambient temperature: -40°C~85
- Salt spray: 48H
- Flame retardant rating: UL94 V-0-
- Protection grade: IP67
Application
Automation industry
Rail transit industry
New energy industry
Automobile manufacturing industry
Intelligent manufacturing
Ethernet
Product Dimensions
